water-cooled box type industrial water chiller supplier china
- The amc-3SLA including the below technical parameter:
- Cooling capacity(kcal/h):8500
- The power of Refrigeration pump:0.55
- Flow(t/h):4
- pipe diameter:1
- Dimension(L*W*H):1000*780*880
- Weight(kg):150
- freezing medium:R22/404A
- compressor: Inlet completely sealed or semi-sealed
Brief Introduction:
SL series industrial water chiller is samll in size with beautiful appearance,and could be
located in sites directly.the characteristics are: whatever the outside temperatures is,
it could run as usual,and at the same time,the effect of dispelling heat could avoid being
affected by the environment dust.
Various kinds of specifications are available here,the range of refrigeration could be
between 8500kcal to 103500kcal,the freeze water temperature could be between 4°c to 20°c,there are many safeguards for the unit,which guaranteed the safety operation of the unit.
It could be used in the following industry:textile,printing and dyeing,drug ingredients,plastic machining,central air-conditions,and many other processand places that need freeze water.
The process including assembing of the whole unit,inside wiring,vacuuming,
adding refrigerant,adjustment andetc.Are all completed in the company,
which could further ensure the stability of the unit, also easier for site installation.
Technical parameter:
specification Cooling capacity(kcal/h) Refrigeration pump Cooling capacity Dimension Weight(kg) freezing medium Power(kw) Flow(t/h) KCAL pipe diameter Length(mm) Width(mm) Height(mm) compressor 3SLA 8500 0.55 4 4 1 1000 780 880 150 R22/404A Inlet completely sealed or semi-sealed 5SLA 12500 0.75 5 5 1 1000 600 1000 165 R22/404A 8SLA(B) 18900 1 8 8 1 1500 750 1300 280 R22/404A 10SLA(B) 26530 1.5 12 12 1.5 1500 750 1300 300 R22/404A 12SLA(B) 30500 2.2 12 20 2 1500 750 1300 320 R22/404A 15SLA(B) 34500 2.2 12 22 2 1500 750 1300 350 R22/404A 20SLA(B) 52460 2.2 12 22 2.5 1500 750 1400 450 R22/404A 25SLA(B) 58996 3 16 22 2.5 2000 750 1400 500 R22/404A 30SLA(B) 78690 3 16 35 2.5 2500 900 1500 530 R22/404A 45SLA(B) 114000 3.75 16 35 2.5 2500 900 1500 770 R22/404A 50SLA(B) 117992 3.75 22 40 3 3000 1000 1500 1010 R22/404A 60SLA(B) 152000 3.75 22 40 3 3000 1000 1500 1060 R22/404A

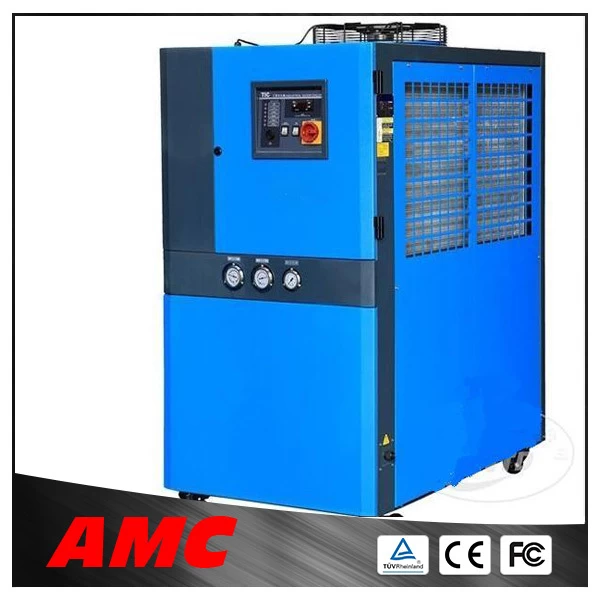

Detailed picture:
