do you want to own chocoalte enrober machine from AMC ?

  • Author:AMC
  • Source:www.coolingtunnelsystem.com
  • Release on :2015-06-09

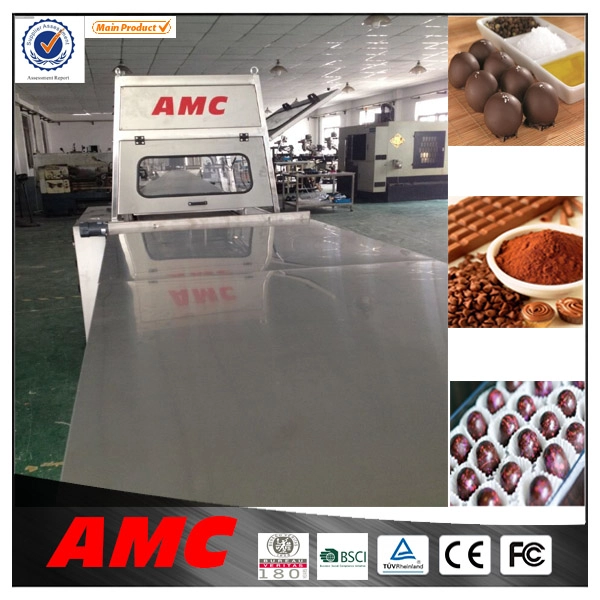

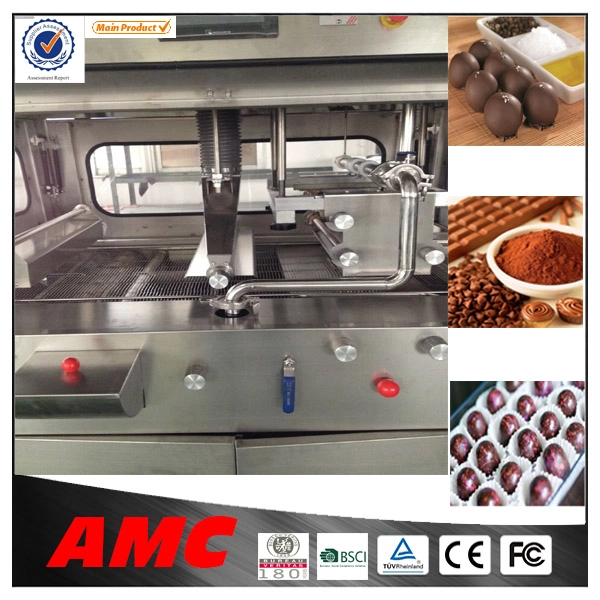

do you want to own chocoalte enrober machine from AMC ?



Function

To assemble on an automatic tempering machine for the enrobing of biscuits, bread,cake etc with chocolate.

Construction

  • Stainless steel construction and with PU belt conveyor
  • Extension take-off and paper to produce enrobed pralines.
  • Standard double chocolate curtain.
  • Standard with detailer.
  • mesh Width 35/55/75/95cm.
  • Adjustable chocolate bath.
  • Adjustable vibrating movement.
  • With transparent cover with integrated heating for keeping the enrober space warm.
  • Extension discharge mounted on a trolley with castors, that not only serves as support for the extension discharge, but also as storage trolley for the wire conveyor (or vibration table) when this is not used.
  • Speed approximately :1-3m/min

Electricity

Single phase 220-240V 50Hz or 110-120V 60Hz or 100V 50/60Hz for choose.
Other executions: on demand.

Options

  • Blower for blowing superfluous chocolate away. Control via PLC of tempering machine Inspire.
  • Bottom tank for enrobing the bottom side of products only.
  • Truffle top, driven by motor of wire conveyor belt, for connection to truffle table.
  • Truffle table 60cm diameter with motor 0,18kW.

Dimensions

12000*850*1800mm;12000*940*1800mm;12000*1400*1800mm; etc

Maintenance

Easy cleaning procedures.
All controls are easily accessible.

References

All over the world.

AMC lover their machine -chocolate enrober machine
