Customized newest design chocolate biscuits coating machine cooling tunnelCustomized newest design chocolate biscuits coating machine cooling tunnelCustomized newest design chocolate biscuits coating machine cooling tunnelCustomized newest design chocolate biscuits coating machine cooling tunnel

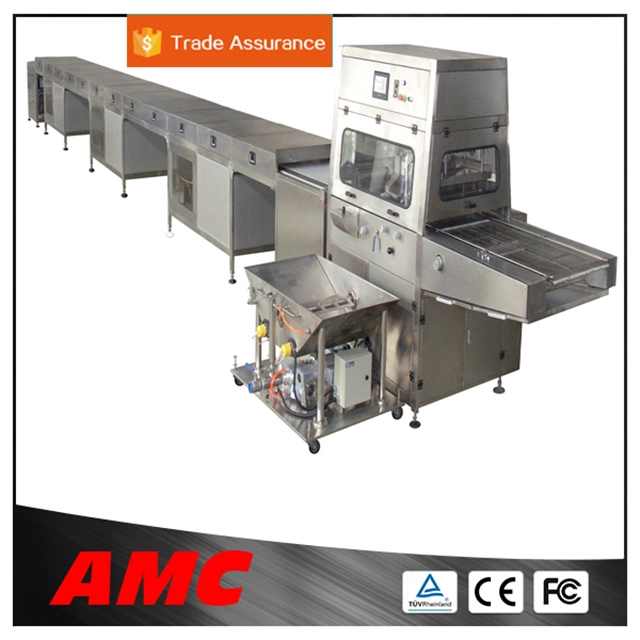

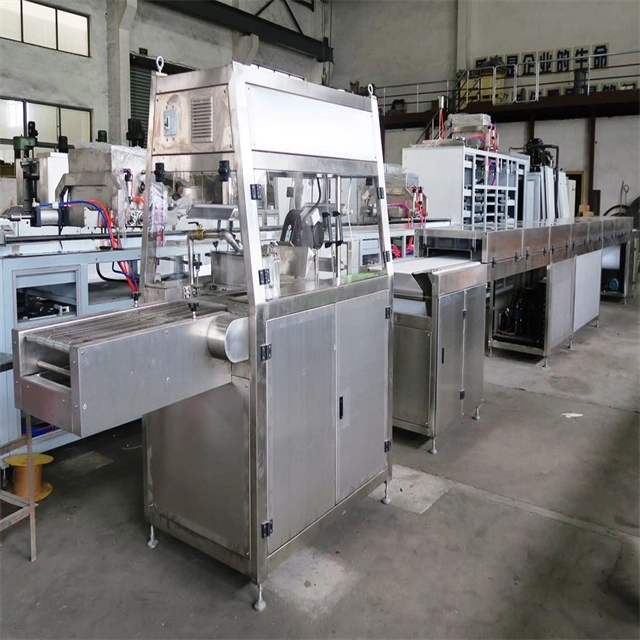

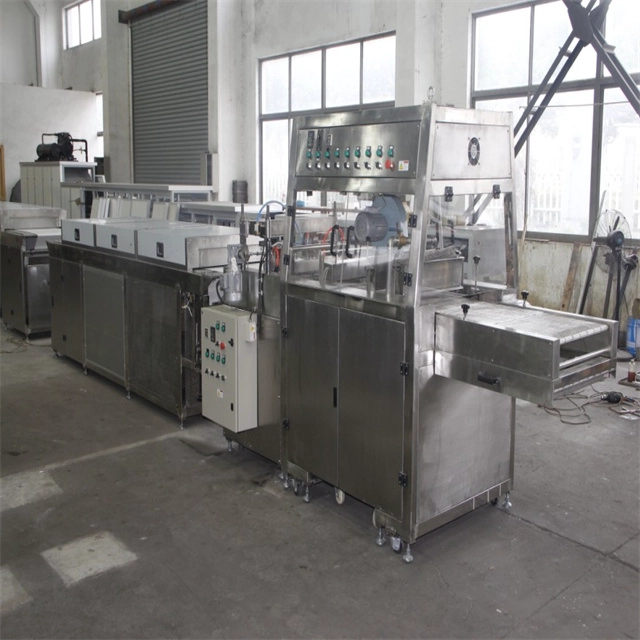

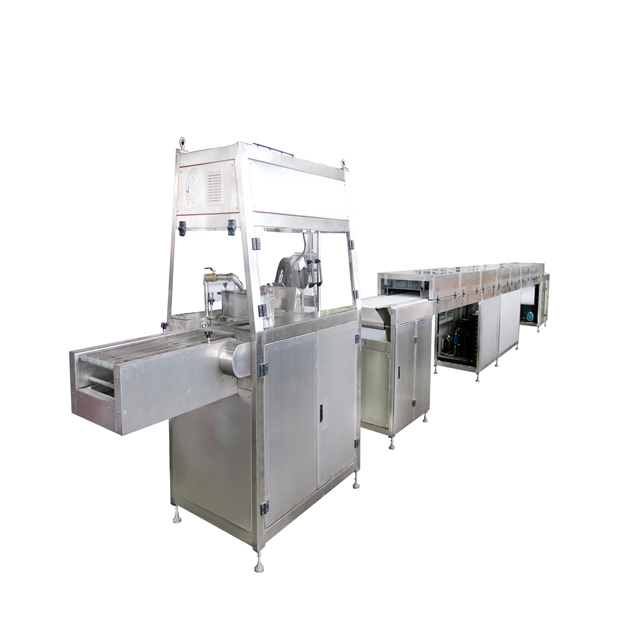

Customized newest design chocolate biscuits coating machine cooling tunnel

  • Condition:New
  • Place of Origin:Jiangsu, China (Mainland)
  • Application:Biscuit,Candy,Chips,Chocolate,donut,Ice cream,Popcorn
  • Voltage:220V/380V
  • Power(W):7.5kw
  • Weight:1800kg
  • Dimension(L*W*H):12000*850*1800mm
  • Certification:ISO9001
  • After-sales Service Provided:Engineers available to service machinery overseas
  • Belt Speed:1-3m/min adjustable
  • Mesh belt width:350
  • Cooling tunnel temperature:0-10℃
  • Cooling tunnel Length:10m
  • Attention1:Cooling tunnel length is customized
  • Attention2:Cooling compressor is customized
  • Material:Stainless Steel
  • Suitable Other products:candy,cake ,biscuit,wafer and fruit

ATY400 chocolate coating machine with cooling tunnel for wafer



Product Description



Brief Introduction:
It is for a special purpose of producing assorted chocolates. It can coat thick chocolate syrup on many kinds of food, such as candy, pastry, biscuit etc. to form chocolates with various unique flavors.

Feature:

Item Name

chocolate coating machine with cooling tunnel for wafer

Application

candy,cake ,biscuit,wafer and fruit

Brand

AMC- Chocolate Coating Machine

Model

ATY-400,ATY-600, ATY-800, ATY-1000, ATY-1200

Material of Frame

Stainless Steel

Material of Belt

Wire Mesh Belt (Food industry)

Sectional Part

Coating and Cooling Tunnel

Length of Enrober

~2000mm

Length of Cooling Tunnel

As request,usually 10 meter.

Width of Belt (mm)

350,550, 750, 950, 1150

Width of Conveyor (mm)

400,600, 800, 1000, 1200

Speed of Belt

1-3 m/min

Temperature of cooling tunnel(℃)

0~10 m/min

Weight

1800,2300,2800,3600,4000 kg

Capacity

As request

Voltage

220V/380V as customized

Power

7.5KW ~ 12.5 KW

Warranty

1 Year

Package

Wooden Case or as customers' requests.

Common Size

L*850*1800,L*940*1800, L*1400*1800, L*1650*1800, L*1850*1800





Pictures



Please check the chocolate coatin machine video in Youtube Web: https://youtu.be/1HL30uaPI5Q

Packaging & Shipping
1.Wooden case or as customers' requests.
2.By sea.





Our Services





a. Specializing in this field for more than 10 years, we’ve been the Global Supplier of multinational companies.

b. Have own R&D Dept. & Production Equipment.

c. A number of Practical Patents in the Energy Saving and Environmental Protection.

d. CE,TUV, ISO, AQA Certificated.

e. Nice appearance.

f. Unique Design for Cover, which can be opened double sides.

g. Various of dimensions, customized is available.

h. Precise temperature control by separated zones used.

I . Precision engineering.

J. Radiation cooling.





Company Information



FAQ



1. Delivery Time:

40-60 days after receiving the deposit.

2. Terms of payment:

50% T/T in advance, the balance shall be paid before the shipment. The above price is based on current exchange rate, if the exchange rate changed 2%, we cannot keep the price.

3. Factory Test

Following assembly, we always conduct a Factory Acceptance Test (F.A.T), often with the participation of our customers.

4. On-site Installation Final assembly often takes place in cooperation with the customer.

5. Testing & Training (If you need):

The plant layout design, assembling, installation and debugging, startup and local team training will be Free at no cost. But the buyer should be responsible for theround trip air tickets, local transportation, board & lodging, and USD $ 45/day/person for the pocket money to our technicians.
