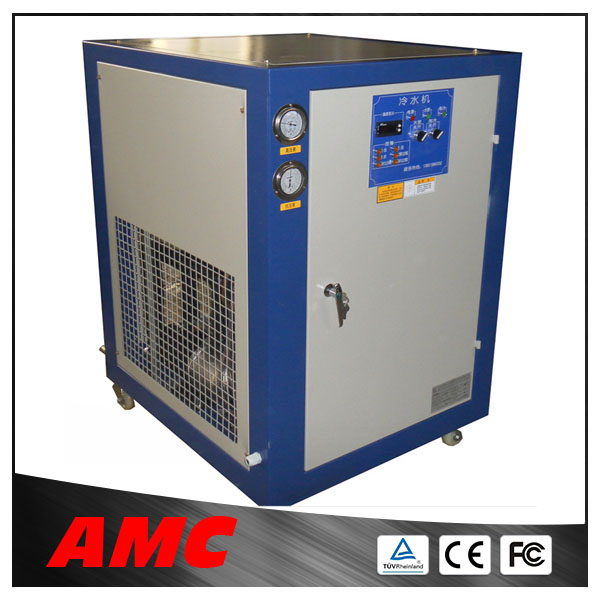

Customized newest designed high effect low price water chiller and air chiller
what is water chiller ?
Chiller is a vapor compression or absorption refrigeration cycle to achieve the effect of the machine through. These fluids can flow through the heat exchanger reaches the air or equipment cooling purposes. Vapor compression chillers consists of four main components of the vapor compression refrigeration cycle (compressor, evaporator, condenser, metering device forms part), these machines can achieve different refrigerants. Benign refrigerant and urban water absorption chillers use silica gel as desiccant. Absorption chillers using water as a refrigerant, and rely on water and lithium bromide solution between, in order to achieve the cooling effect is very strong affinity. In most cases, pure water is chilled, but the water may also contain a percentage of ethylene glycol and / or corrosion inhibitor; such as thin oils can be chilled as well as other liquids
Technical Data Folding
Freezing capacity (Kcal / h) 7216
Chilled water flow m3 / h 1.44
Cooling air flow m3 / h 3000
R22 refrigerant Name
Water tank capacity m3 / h 0.038
Temperature range (℃) 5- room temperature
Compressor input power (KW) 2.25
Pump input power 0.37KW; Head: 20 m, Taiwan source licensing legislation
Out of the water pipe diameter 1 "
Power 3N-380V / 50HZ
Dimensions (L × W × H) mm
Weight (KG) 130
