AMC stainless steel high capacity multipurpose chocolate enrobing machine
- AMC-SSEM400 including:
- Total power(kw):7.5
- Dimension(mm):12000*850*1800
- Net Weight(Kg):1800
- Width of conveyor belt(mm):400
- Speed of conveyor belt(m/min):1-3
- Width of mesh belt(mm):350
- Temperature of cooling tunnel(°C):0-10
- Cooling tunnel length(m):10

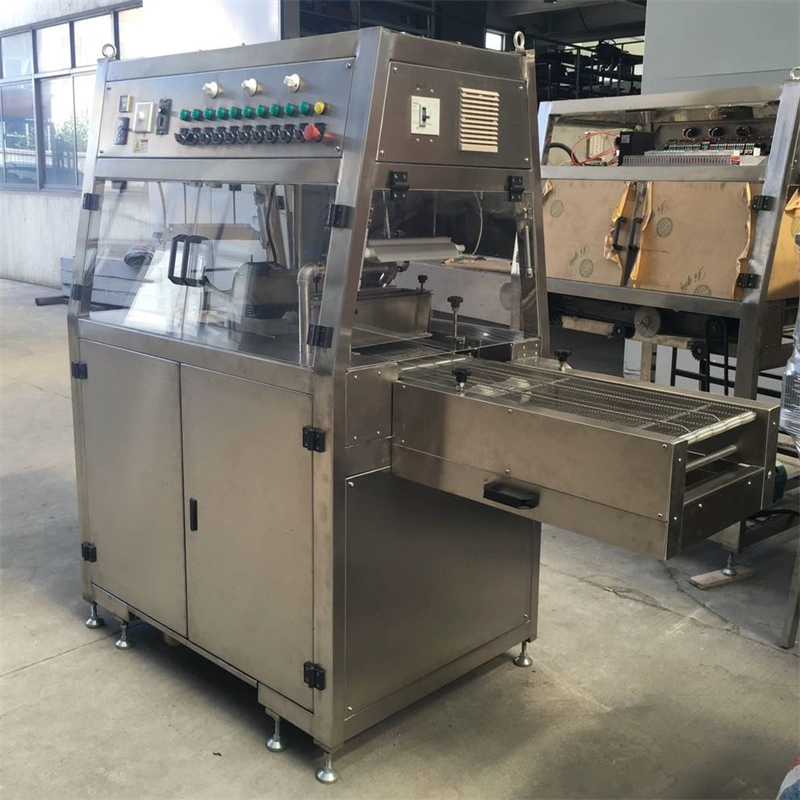

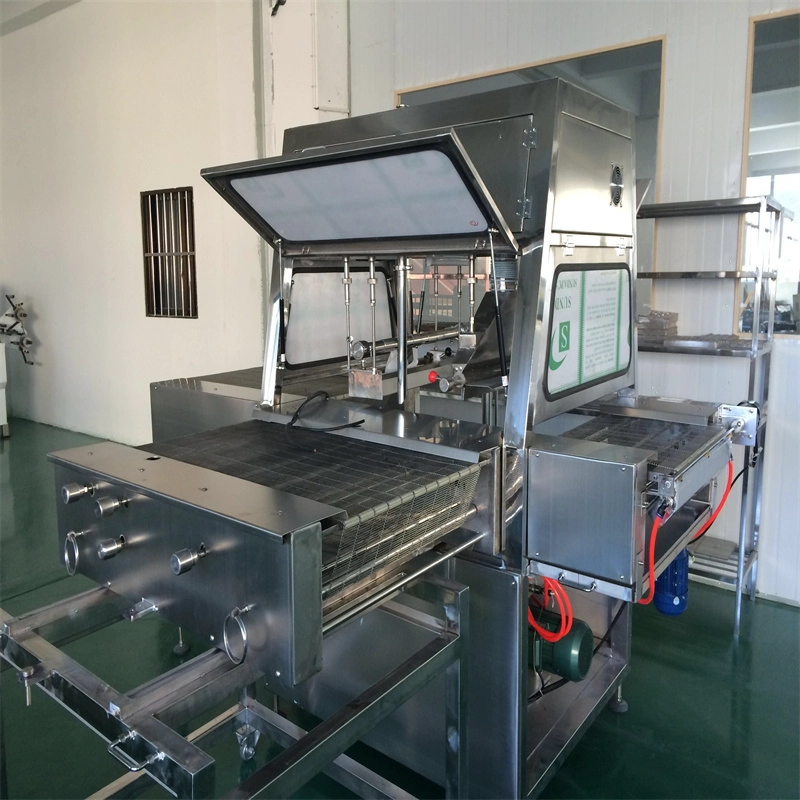

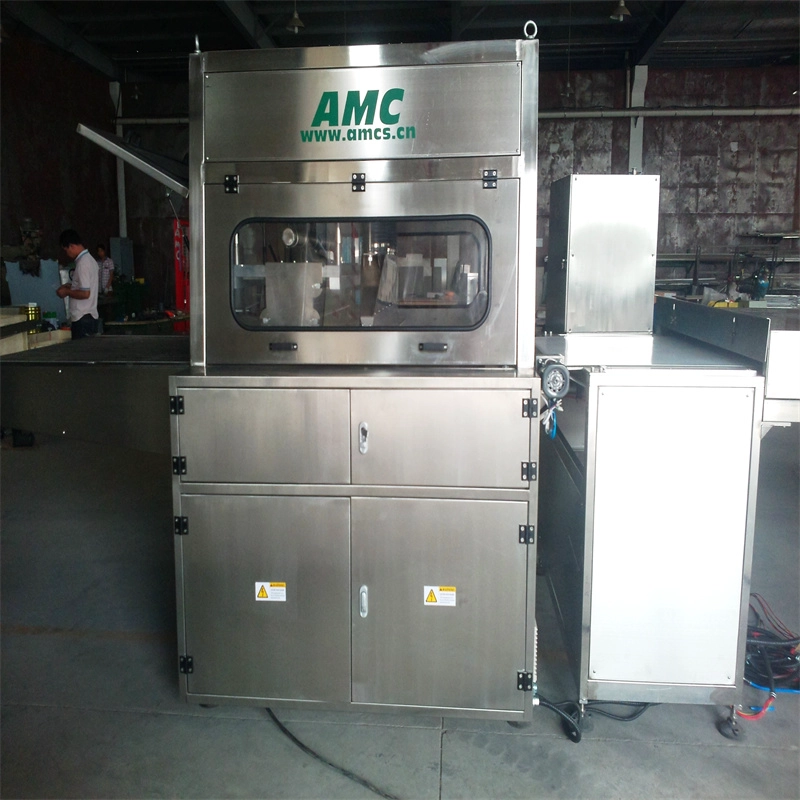

AMC stainless steel high capacity multipurpose chocolate enrobing machine
Product Features:
Brief Introduction:
chocolate enrobing machine can coat chocolate paste on the surface of many kinds of foods,such as candy,cake,wafer,biscuit and fruit etc.it can coat chocolate on all sides of food or coat chocolate on bottom-side for your option.
Technical parameter:
|
Model |
AMC-SSEM400 |
AMC-SSEM600 |
AMC-SSEM800 |
AMC-SSEM1000 |
AMC-SSEM1200 |
|
Total power(kw) |
7.5 |
9.17 |
9.17 |
12 |
12.5 |
|
Dimension |
12000*850*1800 |
12000*940*1800 |
12000*1400*1800 |
12000*1650*1800 |
12000*1850*1800 |
|
Net Weight(g) |
1800 |
2300 |
2800 |
3600 |
4000 |
|
Width of conveyor belt(mm) |
400 |
600 |
800 |
1000 |
1200 |
|
Speed of conveyor belt(m/min) |
1-3 |
1-3 |
1-3 |
1-3 |
1-3 |
|
Width of mesh belt(mm) |
350 |
550 |
750 |
950 |
1150 |
|
Temperature of cooling tunnel(°C) |
0-10 |
0-10 |
0-10 |
0-10 |
0-10 |
|
Cooling tunnel length(m) |
10 |
10 |
10 |
10 |
10 |

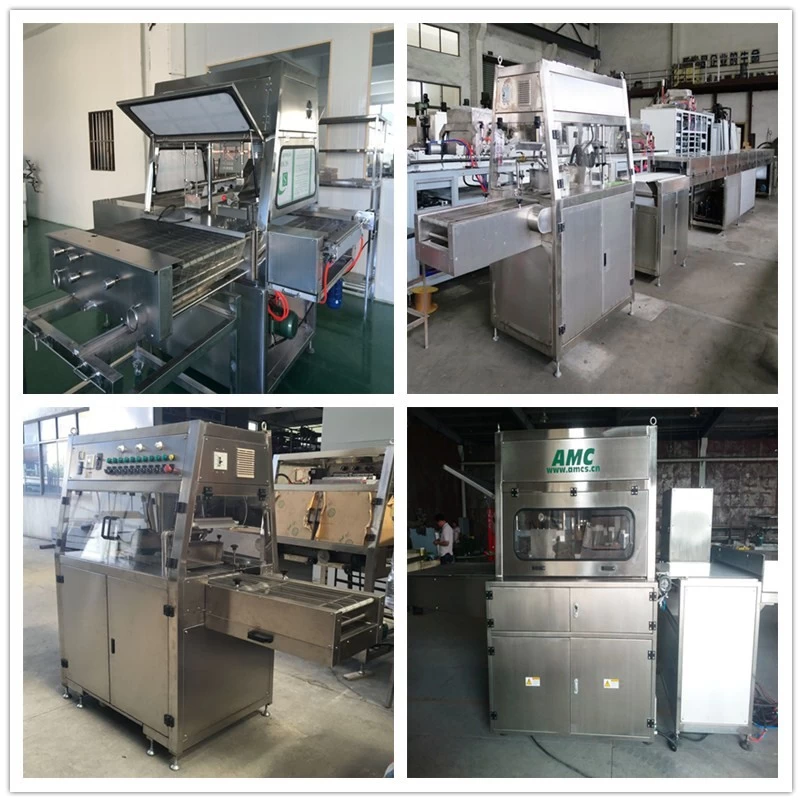

Product Show:
About Us:
AMC System Technology (Suzhou) Co., Ltd was established in 2003. Our main equipment includes food machinery, cooling tunnels, refrigeration systems, robot assembly and packaging systems, and intelligent conveying systems. Our products cover fields such as food, health, new energy, photon communication,3C,automotive components etc.
We are the core supplier for companies such as Kraft, Mondelez, Nestle, GM, Henkel, Taiyo Ink and Trans-Matic, etc. AMC has 15 years of global trade experience. Currently, AMC products have been exported to more than 33 countries.
AMC believes in innovation, and we have become a high-tech enterprise, with a number of independent intellectual properties and patents and inventions. AMC adheres to a corporate culture of honesty, respect, openness, and innovation. We warmly welcome domestic and foreign valuable customers.
Our Factory:
Certification:
Package:
Our Advantages:
- Specializing in this cooling tunnel field for more than 10 years, Have been the Global Supplier of multinational companies.
- Have own R&D Dept. & Production Equipment.
- A number of Practical Patents in the Energy Saving and Environmental Protection.
- CE,TUV, ISO, AQA Certificated.
- Nice appearance.
- Unique Design for Easy cleaning & Maintenance.
- Various of dimensions, customized is available.
- Precise temperature control by separated zone used.
