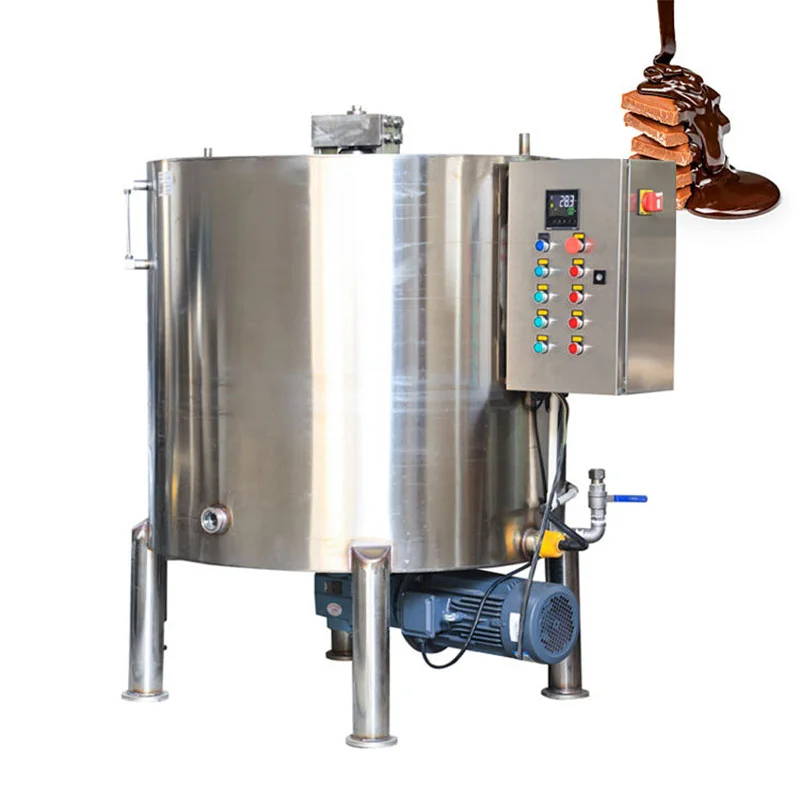

China New Chocolate Storage Tank for Manufacturing Plant factory
- Condition:New
- Place of Origin:Jiangsu, China (Mainland)
- Brand Name:AMC-Chocolate Thermal Insulation Cylinder
- Model Number:ABW Series
- Application:Chocolate
- Voltage:Customized
- Power(W):1.1KW
- Weight:500
China Chocolate Holding Tank Fatory
Brief Introduction:
China Chocolate Storage Tank Manufactures is in the chocolate production necessary equipment, mainly uses in after the correct grinding chocolate syrup heat preservation storing, satisfies the chocolate production the technological requirement, adapts the continuous production request. This product besides has functions and so on temperature decrease, elevation of temperature, heat preservation, may carry on to the chocolate pulp does not stop stirs, but also has the de-gasification, the air sweetening, to dehydrate as well as to prevent functions and so on pulp fat separation.
China Chocolate Paste Holding Tank Supplier
Technical Parameter:
|
Type |
Capacity (L) |
Power (KW) |
Weight (KG) |
Dimension (mm) |
|
ABW10000 |
10000 |
11 |
5000 |
C 2250*3800 |
|
ABW5000 |
5000 |
7.5 |
3000 |
C 2200*2250 |
|
ABW3000 |
3000 |
5.5 |
2000 |
C 1900*2150 |
|
ABW2000 |
2000 |
3 |
1500 |
C 1700*2100 |
|
ABW1000 |
1000 |
2.2 |
1000 |
C 1220*1850 |
|
ABW500 |
500 |
1.5 |
600 |
C 1000*1380 |
|
ABW300 |
300 |
1.5 |
200 |
C 900*1250 |
|
ABW200 |
200 |
1.1 |
180 |
C 800*1150 |
|
ABW100 |
100 |
1.1 |
150 |
C 650*950 |
Feature:
|
Item Name |
Chocolate Thermal Insulation Cylinder |
|
Application |
Chocolate Industry |
|
Brand |
AMC- Chocolate Thermal Insulation Cylinder |
|
Model |
ABW-300, ABW-500, ABW-1000, ABW-3000, ABW-5000 |
|
Material of Frame |
Stainless Steel |
|
Total Power |
1.5 KW ~ 11 KW |
|
Motor Power |
1.1 ~ 5.5 KW |
|
Electric Heating Power |
2 ~ 6 KW |
|
Stirred Speed |
24 r/min |
|
Direction of Stirrer |
Clockwise (Looking down direction) |
|
Cylinder Jacket water temp |
55 ℃(Preheating temp when plasma melting) |
|
Outside Dimension |
¢900x1250 ~ ¢ 2300x2320 |
|
Weight |
200 ~ 3000 KG |
|
Nominal Volume |
300 ~ 5000 KG |
|
Voltage |
220V/380V/420V |
|
Warranty |
1 Year |
|
Package |
Wooden Case |
|
Ambient Temp |
5 ~ 40 ℃ |
Advantage:
a. Specializing in this field for more than 10 years, we’ve been the Global Supplier of multinational companies.
b. Have own R&D Dept. & Production Equipment.
c. A number of Practical Patents in the Energy Saving and Environmental Protection.
d. CE,TUV, ISO, AQA Certificated.
e. Nice appearance.
f. Unique Design for Easy cleaning & Maintenance.
g. Various of dimensions, customized is available.
h. Precise temperature control by separated zones used.
I . Precision engineering.
Benefit:
1. More professional and experienced suggestion and solution will be given.
2. Innovation, our R & D dept are always work for a better solution.
3. Energy Saving and Environmental Protection.
4. Reliable and safe.
5. Nice Appearance.
6. Easy Clean and Maintenance.
7. Unique Design as you request.
8. Precise temperature control.

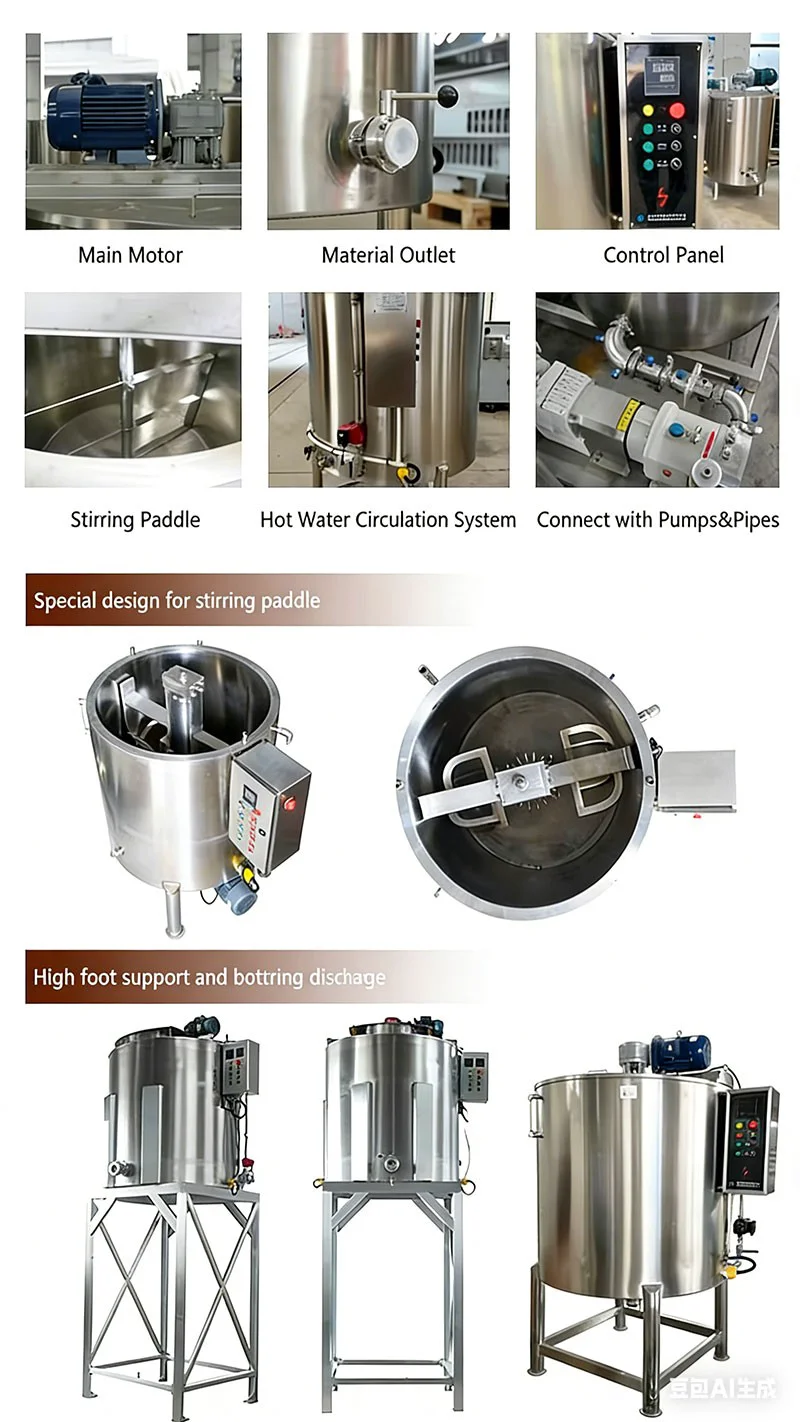

Detail Image:
