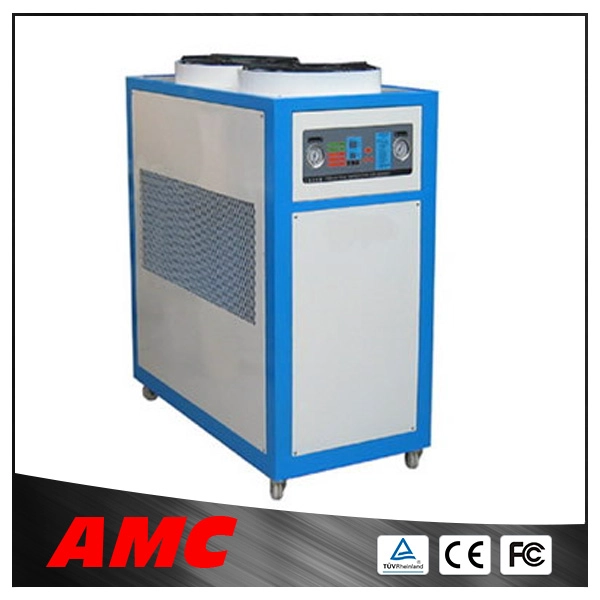

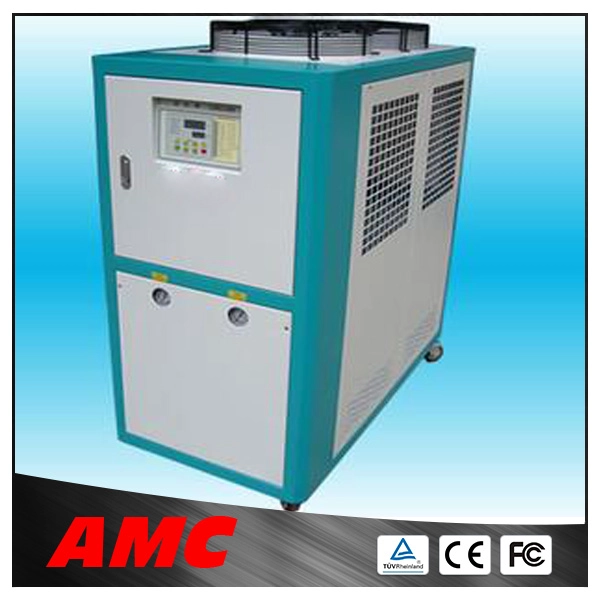

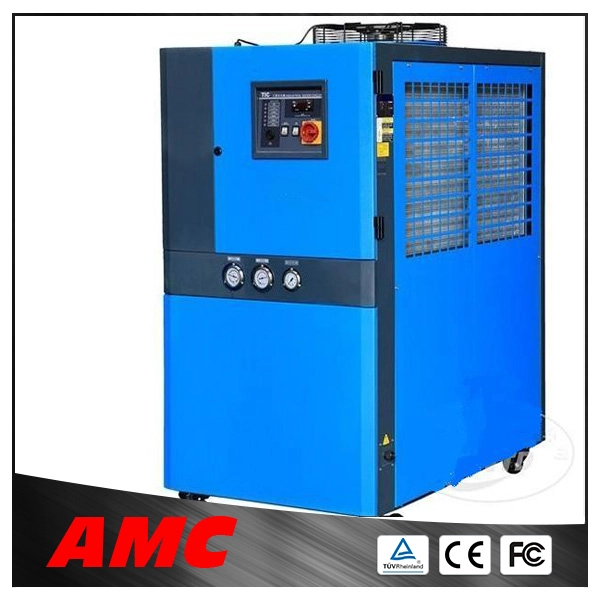

Industrial process air cooler box water chiller Specifications “SL” industrial water chiller could be installed easily,and no need to equip cooling tower, all the specifications from 15 to 30HP are available, the unit equips multi-safety protection,which could ensure the safety operation of the whole unit.Assembling,inside wiring,vacuumize,adding refrigerant and adjustment are all finished in the company,which could further ensure the stability of the unit.It could be used in the following industry:raw material of food,cooling of finished products, ultrasonic cleaning, laser, medical equipment,precision machinery for balance temperature. |
specification |
SL1.5 |
SL2 |
SL3 |
SL5 |
SL6 |
SL8 |
SL10 |
SL12 |
SL15 |
SL20 |
SL25 |
SL30 |
|
cooling capacity(kcal/h) |
3870 |
4140 |
8500 |
12500 |
15514 |
18900 |
26530 |
30014 |
34500 |
58000 |
63500 |
69000 |
|
Pump flow(t/h) |
1.25 |
2 |
2 |
4 |
4 |
6 |
8 |
8 |
10 |
16 |
16 |
16 |
|
Pump power(kw) |
0.1 |
0.37 |
0.37 |
0.55 |
0.55 |
0.75 |
0.75 |
0.75 |
1.5 |
2.2 |
2.2 |
3 |
|
Water tank capacity(L) |
60 |
72 |
100 |
140 |
150 |
198 |
216 |
230 |
287 |
492 |
600 |
660 |
|
Fan power(kw) |
0.09 |
0.12 |
0.12 |
0.18*2 |
0.18*2 |
0.18*2 |
0.37*2 |
0.37*2 |
0.37*2 |
0.75*2 |
0.75*2 |
0.75*2 |
|
dimension |
L(mm) |
600 |
820 |
800 |
870 |
870 |
1400 |
1500 |
1550 |
1680 |
1950 |
2090 |
2300 |
W(mm) |
600 |
650 |
700 |
800 |
800 |
950 |
980 |
980 |
980 |
1230 |
1200 |
1200 |
|
H(mm) |
100 |
1290 |
1250 |
1360 |
1360 |
1400 |
1400 |
1400 |
1920 |
1900 |
2100 |
2200 |
|
weight(kg) |
80 |
120 |
150 |
180 |
210 |
300 |
350 |
550 |
610 |
750 |
800 |
950 |
|
refrigerant |
R22 |
||||||||||||
Compressor |
Inlet completely sealed or semi-sealed |
