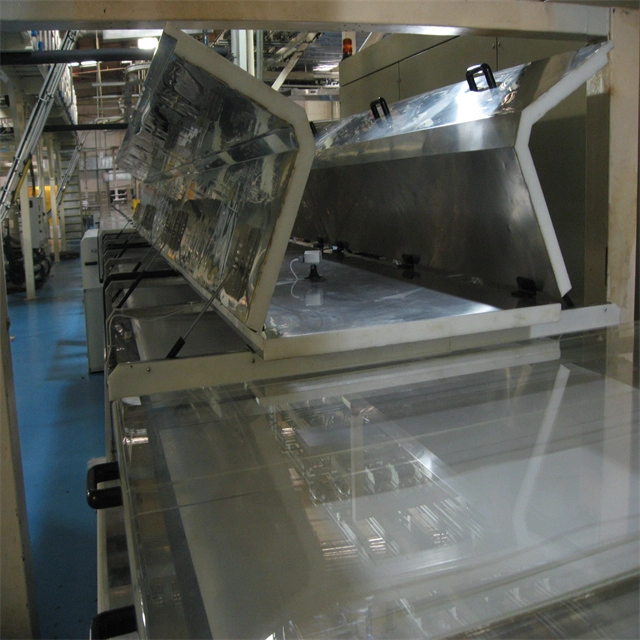

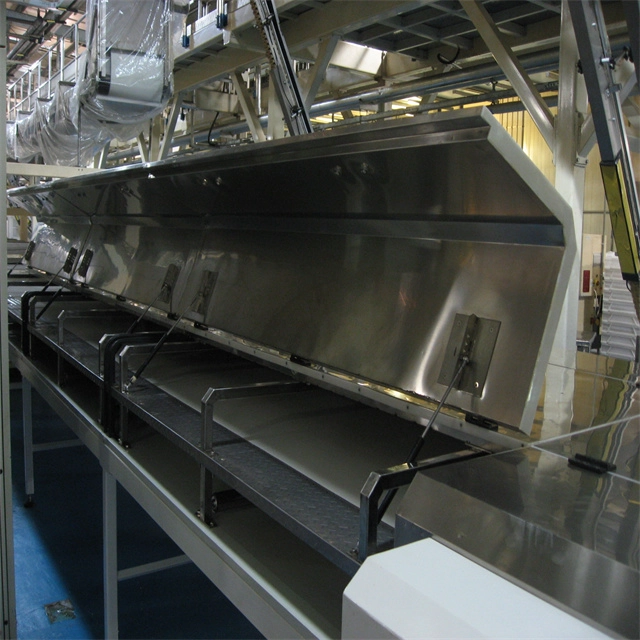

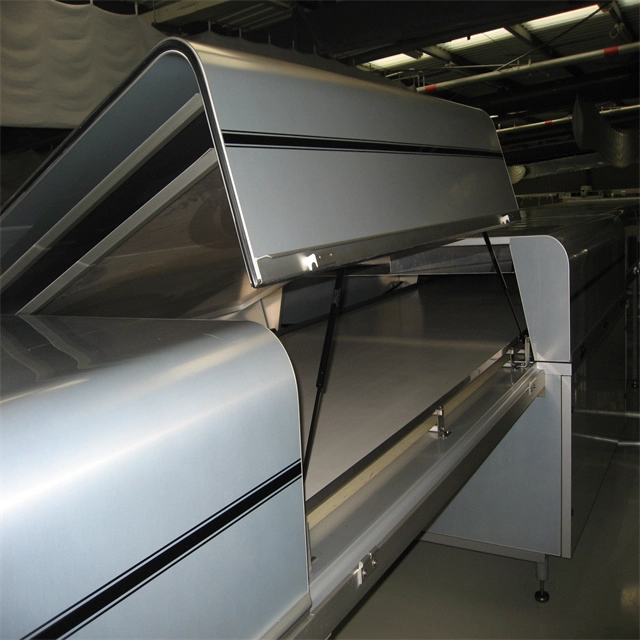

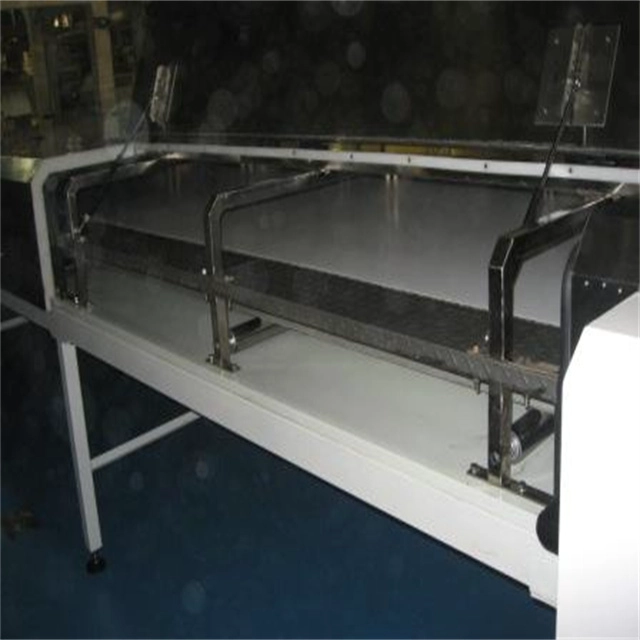

Factory Price High Capacity Easy Operation Biscuit Candy Bread Chocolate Cooling Tunnel
- Place of Origin: Jiangsu, China (Mainland)
- Type: Meat Processing Machinery
- Provided: Engineers available to service machinery overseas
- material: stainless steel304
- Processing Types: choclate Product Processing: coating the natural cocoa butter
- size1: 15000*1650*1800mm
- Belt speed: 1-13m/min
- mesh/pu width: 350/550/750mm
- net weight: 3600kg
- advanced: TUV/ISO9001
- cooling length: 10m or more

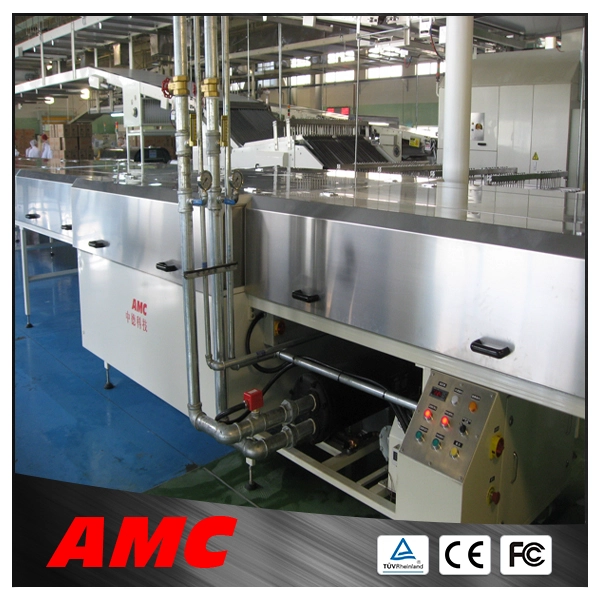

Biscuit and Candy and Bread and Chocolate Cooling Tunnel
Features:
|
Type |
Air-cooled / Water-cooled |
|
Weight |
150Kg/Meter |
|
Capacity |
100-2000Kg/Hr |
|
Speed |
Adjustable 1~15 M/min |
|
Voltage |
220V/380V/420V |
|
Power |
10-45KW |
|
Tunnel Temp |
0~10℃ |
|
Material of Frame |
Stainless Steel |
|
Material of Belt |
PU Belt (Food industry) |
|
Application |
Food Industrial Cooling |
|
Drive Motor |
SEW / CPG 1.1~5.5KW |
|
Compressor |
BITZER / Copeland 5~25 Hp |
|
Condenser |
BITZER / Copeland |
|
Warranty |
1 Year for Chocolate cooling tunnel |
|
Package |
Wooden Case |
|
Holding Time |
1~60 min |
|
Control Models |
PLC & Touch Panel |
|
Working Temp |
-10~10 ℃ for Chocolate Cooling Tunnel |
|
Common Size |
W=1150/1450/1750(mm) |
Advantage:
a. Specializing in this field for more than 10 years, Have been the Global Supplier of multinational companies.
b. Have own R&D Dept. & Production Equipment.
c. A number of Practical Patents in the Energy Saving and Environmental Protection.
d. CE,TUV, ISO, AQA Certificated.
e. Nice appearance.
f. Unique Design for Easy cleaning & Maintenance.
g. Various of dimensions, customized is available.
h. Precise temperature control by separated zone used.
Benefit:
1. Consistency and flexibility.
2. Innovation.
3. Easy Clean and Maintenance.
4. Nice Appearance.
5. Reliability and Service.
6. Energy Saving and Environmental Protection.
7. Precise temperature control.
