Brief Introduction:
Chocolate moulding machine is the automatic machine for chocolate forming with the functions of mould heating,mould depositing,mould vibrating,conveying,cooling and demoulding.
It not only can produce pure solid chocolate,but also center filling chocolate,two color chocolate,three color chooclate,nuts mixed chocolate,wafer chocolate and so on.
Technical parameter:
Model |
AMC-CMM10 |
AMC-CMM20 |
AMC-CMM30 |
AMC-CMM40 |
Numbers of depositors |
One |
Two |
Three |
One |
Capacity(kg/h) |
100-300 |
100-300 |
100-300 |
100-200 |
Temperature of cooling tunnel(°) |
5-10 |
5-10 |
5-10 |
|
Cooling time(min) |
18-30 |
18-30 |
18-30 |
No cooling |
Power(kw) |
17.4 |
23 |
31.5 |
7.47 |
Size of mould(mm) |
280*200*30 |
280*200*30 |
280*200*30 |
280*200*30 |
Quantity of moulds(pieces) |
280 |
340 |
410 |
200 |
Net weight(kg) |
3500 |
4300 |
5200 |
500 |
Dimension(mm) |
160000*1000*1800 |
160000*1000*2300 |
190000*1000*2350 |
4300*520*1500 |
Type of chocolate |
Pure chocolate |
√ |
√ |
√ |
√ |
Center Filling chocolate |
√ |
√ |
√ |
√ |
|
One color chocolate |
√ |
√ |
√ |
√ |
|
Two color chocolate (left&right) |
√ |
√ |
√ |
√ |
|
Two color chocolate (up$down) |
|
√ |
√ |
|
|
Three color chocolate |
|
|
√ |
|
|
Nuts mixing chocolate |
√ |
√ |
√ |
√ |
|
Wafer chocolate |
√ |
√ |
√ |
√ |

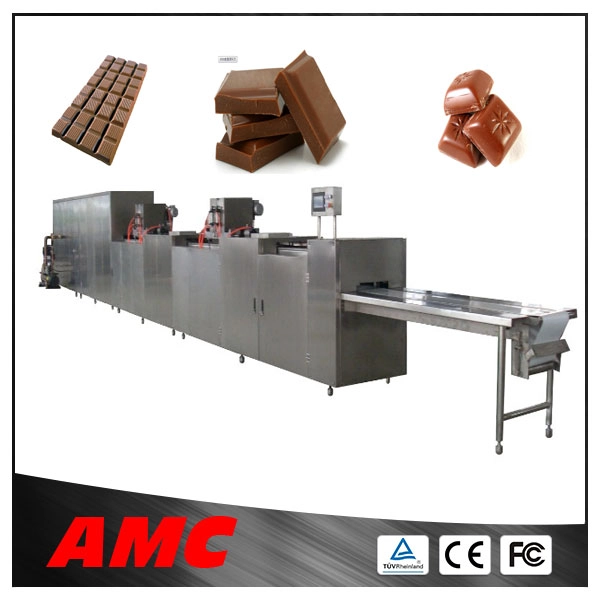

The detailed picture:

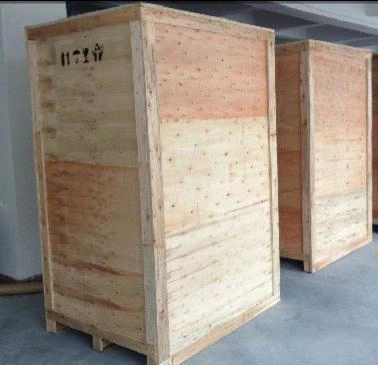

Package:
