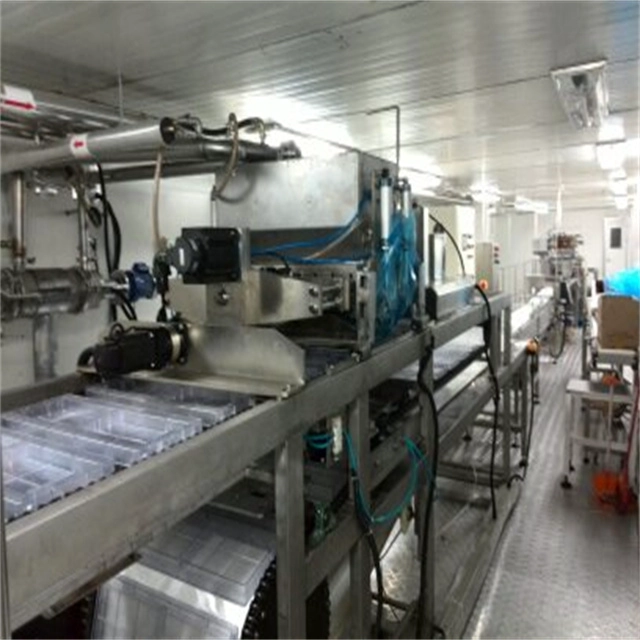

AMC High performance industry process automatic chocolate moulding/depositing machine
- material:stainless steel 304;
- number of depositor:one/two/three
- capacity:100-300kg/h;
- temperature cooling tunnel:5-10℃;
- size :mould:280*200*30mm;
- quantity of moulds:280pcs;
- net weight:3500kg;
- dimension :16000*1000*1800mm
Chinese good supplier for chocolate automatic moulding machine with high quality
1.Materials:
All parts contact with foods and the machine’s whole frame are made by stainless steel304/316.
2. Features:

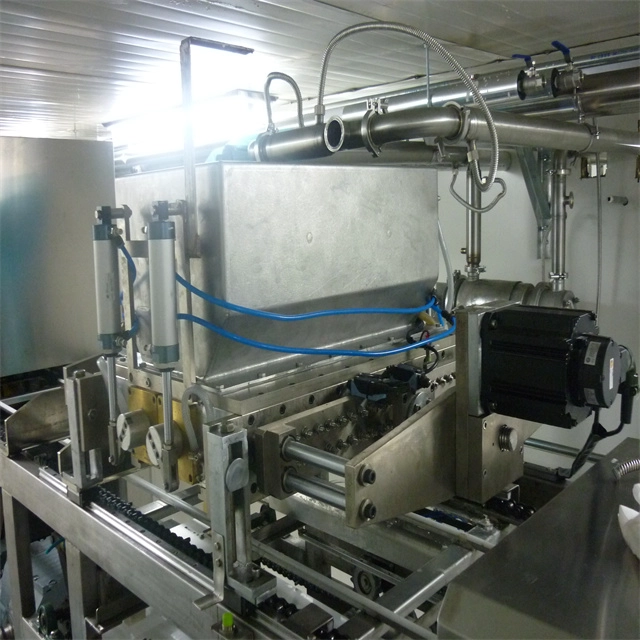

The chcolate depositing/moulding machine is the automatic machine for chcolate forming with the function of mould heating,chocolate depositing,biscuit moulding,mould vibrating,conveyor,cooling and demoulding.It's not only produce pure solid chocolate,but also center filling chocolate,two color chocolate,three colors chocolate,nuts mixed chocolate,wafter chocolate and so on.

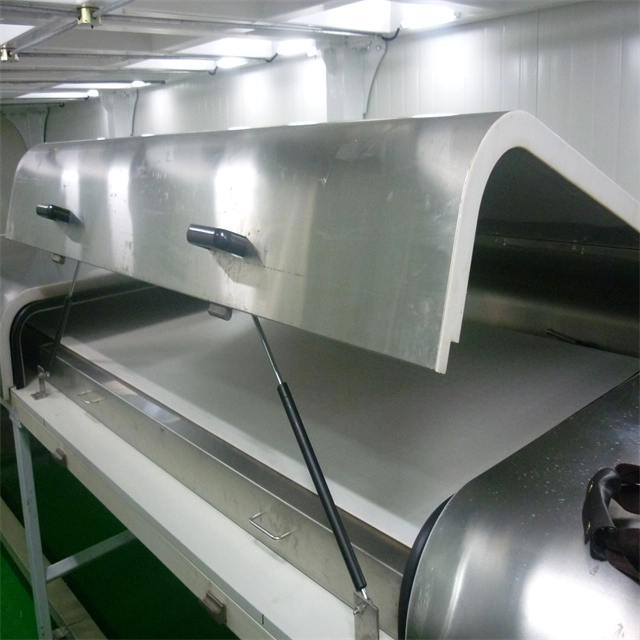

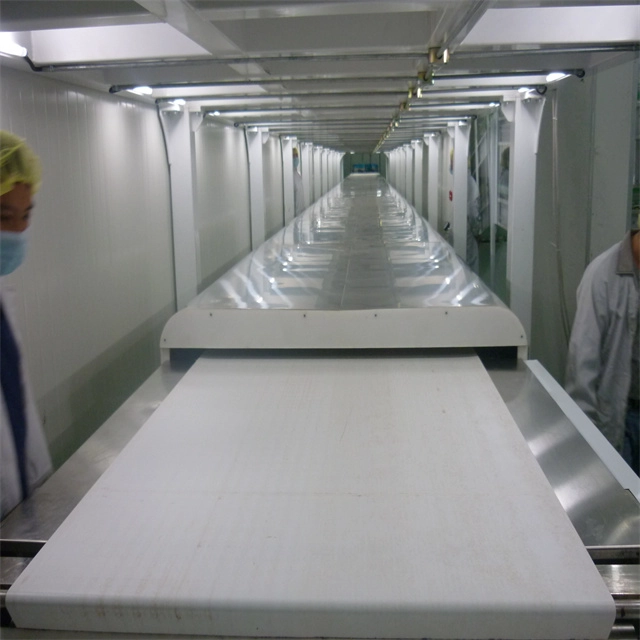

Match with cooling tunnel ( one set of 3HP and two sets of 5HP Refrigerating units).
|
Typ |
Numers of depositor |
Capacity (kg/h) |
Temperature of cooling tunnel(0c) |
Cooling time(min) |
Power(Kw) |
Moulds qty |
Net weight(kg) |
Dimension(mm) |
|
AMC-175-1 |
1 |
100-300 |
5-10 |
18-30 |
17.4 |
280 |
3500 |
16000*1000*1800 |
|
AMC-175-2 |
2 |
100-300 |
5-10 |
18-30 |
23 |
340 |
4300 |
16000*1000*2300 |
|
AMC-175-3 |
3 |
100-300 |
5-10 |
18-30 |
31.5 |
410 |
5200 |
19000*1000*2350 |
|
AMC-150 |
1 |
100-200 |
---- |
no cooling |
7.47 |
200 |
500 |
4300*520*1500 |
FAQ
1. Quick shipment once we received the payment.
2. Production tracking day by day, we can offer photos from our product-lines, for your reference,only;
3. Complain from the customer, will handle by our sales directly and 48 hrs reply once the problems had.
