Newest designed industry process full automatic Multi-Layers Cooling Tunnel Chocolate moulding machine
- The amc-cmm30 including the below technical parameter
- Numbers of depositors:two
- Capacity(kg/h):100-300
- Temperature of cooling tunnel(°):5-10
- Cooling time(min):18-30
- Power(kw):31.5
- Size of mould(mm):280*200*30
- Quantity of moulds(pieces):410
- Net weight(kg):5200
Brief Introduction:
china chocolate moulding machine factory, is the automatic machine for chocolate forming with the functions of mould heating,mould depositing,mould vibrating,conveying,cooling and demoulding.
It not only can produce pure solid chocolate,but also center filling chocolate,two color chocolate,three color chooclate,nuts mixed chocolate,wafer chocolate and so on.
Technical parameter:
|
Model |
AMC-CMM10 |
AMC-CMM20 |
AMC-CMM30 |
AMC-CMM40 |
|
Numbers of depositors |
One |
Two |
Three |
One |
|
Capacity(kg/h) |
100-300 |
100-300 |
100-300 |
100-200 |
|
Temperature of cooling tunnel(°) |
5-10 |
5-10 |
5-10 |
|
|
Cooling time(min) |
18-30 |
18-30 |
18-30 |
No cooling |
|
Power(kw) |
17.4 |
23 |
31.5 |
7.47 |
|
Size of mould(mm) |
280*200*30 |
280*200*30 |
280*200*30 |
280*200*30 |
|
Quantity of moulds(pieces) |
280 |
340 |
410 |
200 |
|
Net weight(kg) |
3500 |
4300 |
5200 |
500 |
|
Dimension(mm) |
160000*1000*1800 |
160000*1000*2300 |
190000*1000*2350 |
4300*520*1500 |
|
Type of chocolate |
Pure chocolate |
√ |
√ |
√ |
√ |
|
Center Filling chocolate |
√ |
√ |
√ |
√ |
|
|
One color chocolate |
√ |
√ |
√ |
√ |
|
|
Two color chocolate (left&right) |
√ |
√ |
√ |
√ |
|
|
Two color chocolate (up$down) |
|
√ |
√ |
|
|
|
Three color chocolate |
|
|
√ |
|
|
|
Nuts mixing chocolate |
√ |
√ |
√ |
√ |
|
|
Wafer chocolate |
√ |
√ |
√ |
√ |

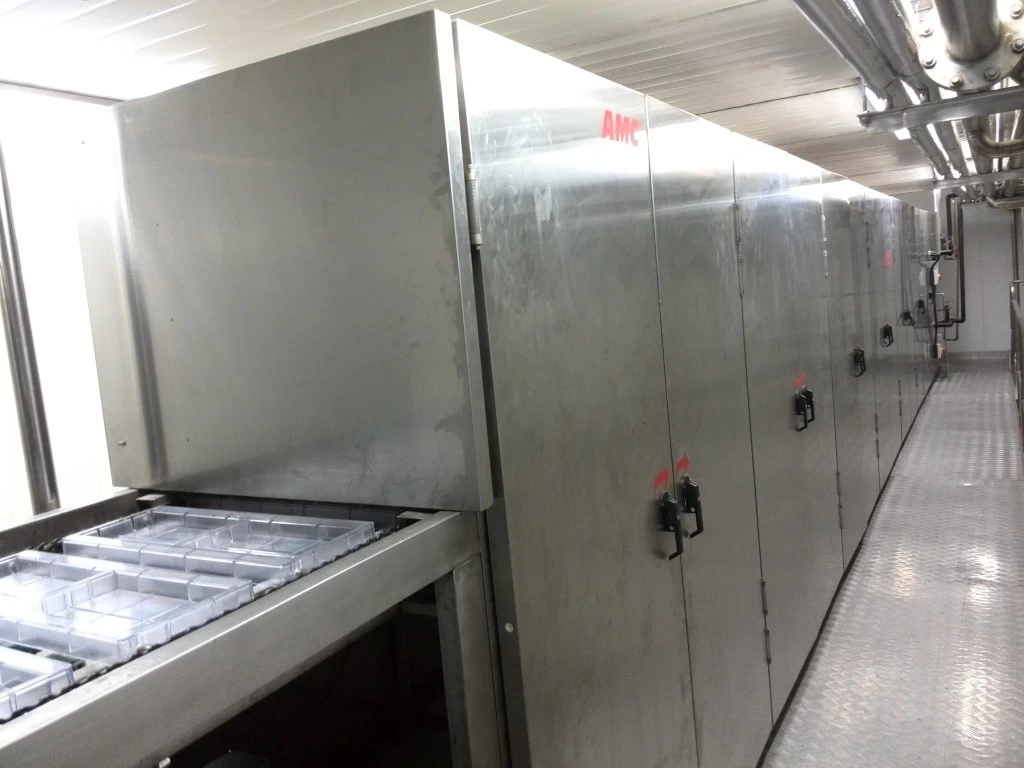

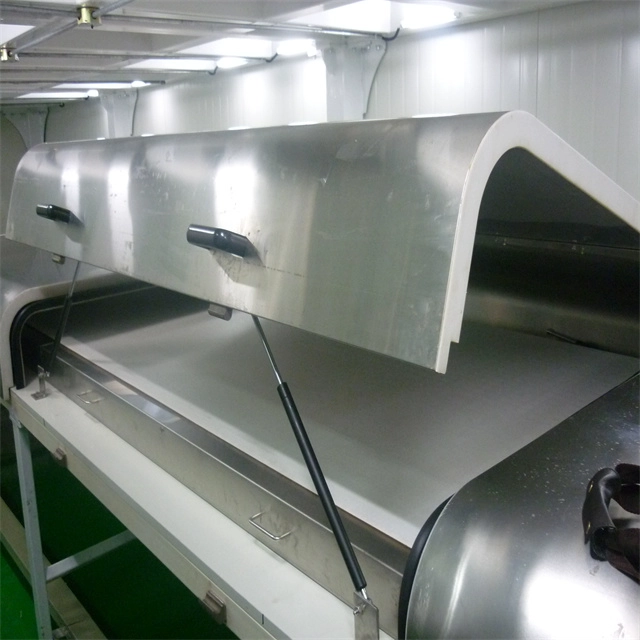

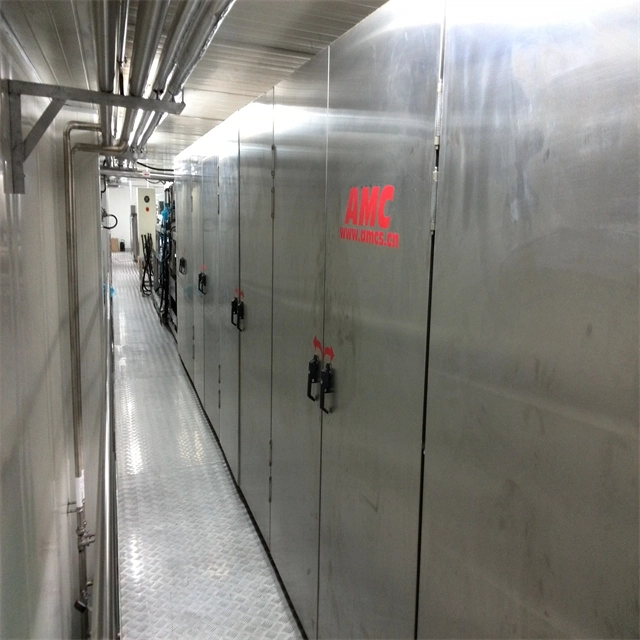

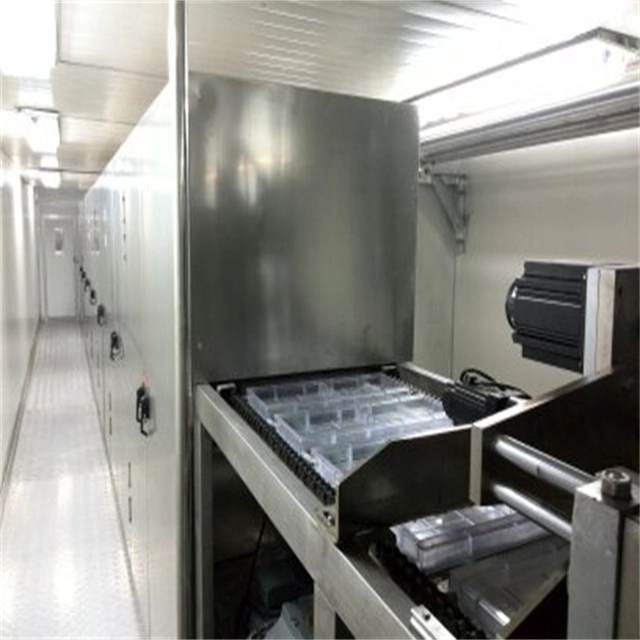

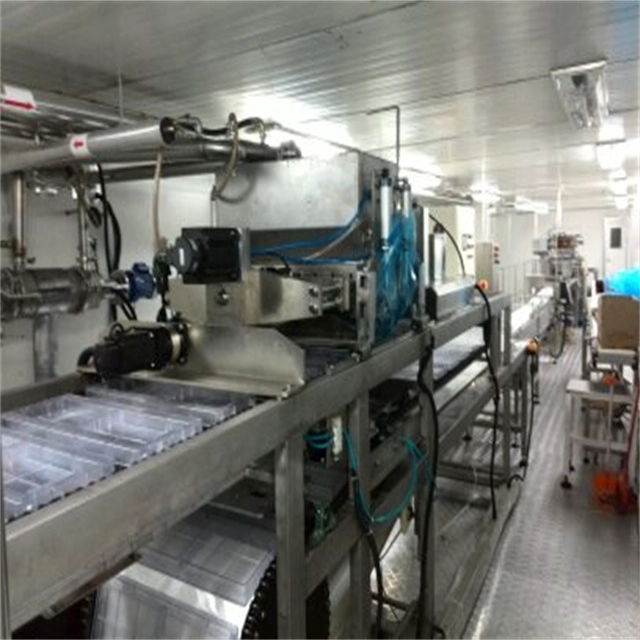

Detailed picture:
